Underfloor Heating Wiring Diagrams

Save money with an underfloor heating trade account

Multi Zone

Multi Zone Underfloor Heating System Using:

Up To A 4 Zone System Show Diagram   or   Download
Up To A 8 zone System Show Diagram   or   Download
Network System Show Diagram   or   Download
Wireless System Show Diagram   or   Download

Single Zone

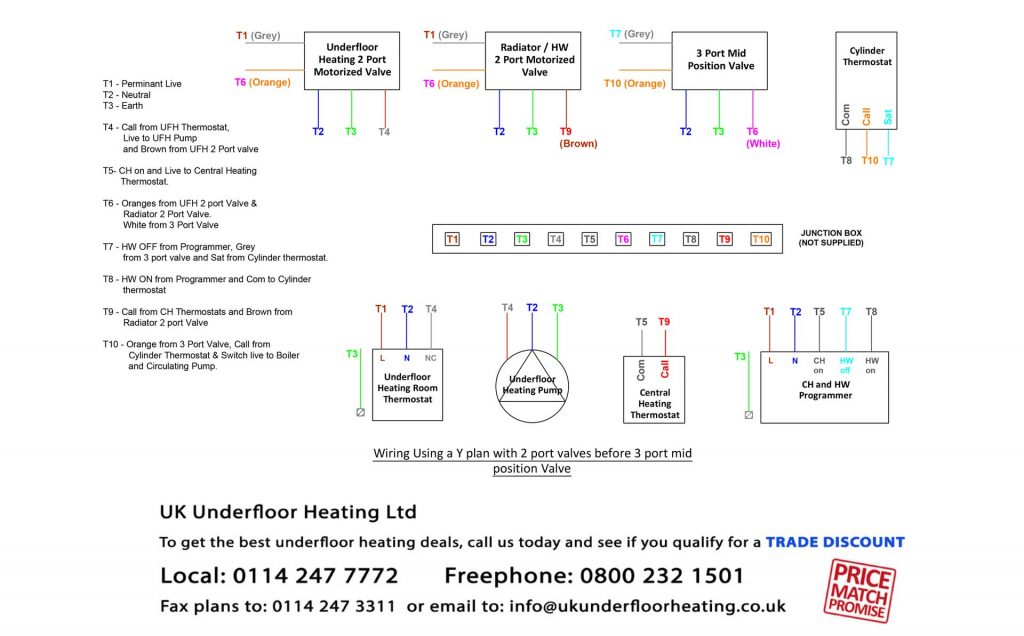

Connecting A Single Zone System To An Existing Y Plan System Show Diagram   or   Option 1
Show Diagram   or   Option 2
Connecting A Single Zone Underfloor Heating System To A S Plan System & Combi Show Diagram or Download
